Rod type thermostat

Product Code: Stem type thermostat 011

Stem type thermostat 011

Temperature Range Available	:	30℃-75℃ or As Per Requirements
Tolerance on Operating Temperature	:	Within ± 5℃
Contact Rating	:	20A 240V AC
Insulation Level	:	AC 50Hz 1800V
Insulation Resistance	:	≥500MΩ
Stem Length (L)	:	275 mm or As Per Requirements
Stem Diameter	:	7.5mm ±0.1 or As Per Requirements
Terminals	:	Screw Type

Manufacturer and OEM of Stem Type Thermostats, Immersion Thermostats, Reset Type Thermostats, Rod Type Thermostats, Stem Thermostats, Geyser Thermostats, Manual Reset Type Thermostats, Electric Heat Thermostats, Thermal Cut Out, Water Heater Thermostats, Heating Thermostats, Temperature Limiters, Thermostat In Water Heater Geyser, etc. including the Universal type and specific design type from China.

Specific type can be designed within safety limit according to client`s Requirements and our quotation will be competitive in your market.

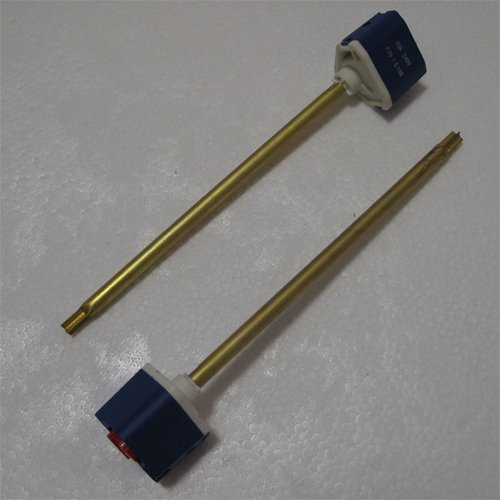

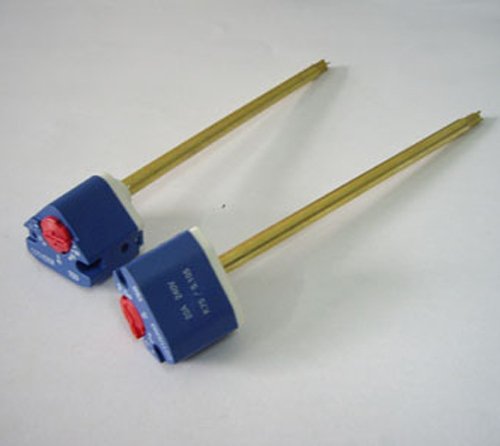

Rod type thermostat image 1

Rod type thermostat image 2

Rod type thermostat image 3

Rod type thermostat image 4
